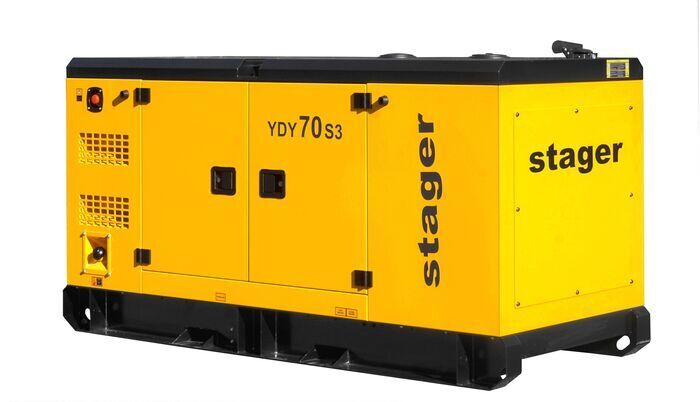

Power Generator YDY70S3 - 56kW, three-phase, diesel, soundproof - Stager
Producer:
 |
Product code:
1158000070S3
Originaal ja asenduskoodid:
1158000070S3
Weight:
1256 kg
Power output:
50 kW
Availability:
Ask for availability before ordering
Description:
Alternator Y224EL, protection degree IP23, insulation class H; Dry air filter, fuel filter, oil filter; Diesel fuel cap with key access;
Mains switch; Emergency stop button mounted on the outside of the housing; Electrical terminal protection covers (to restrict access or accidental touch) Soundproof casing with access doors for maintenance and repairs; The generator access doors are equipped with rubber seals; Rubber side bumpers for the generator doors that prevent accidental hitting of the generator in case of their full opening;
Ventilation slots equipped with protective grilles to prevent large objects from entering the generator; Control panel viewing window, located on a lockable door; SmartGen HGM 4020 control panel; 24V starter battery, holder and cables; Electrical installation organized by color codes and numbers that facilitate interventions even from a distance; Lifting rings at the top of the housing, and the chassis is equipped with slots for loading/unloading with forklifts.
ATS connector
Battery
Digital Display
Equipped with preheating
Equipped with preheating
Wheel kit
Technical data:
GENERATOR
Nominal power: 62 kVA / 50 kW
Maximum power: 70 kVA / 56 kW
Nominal voltage: 230/400 V
Frequency: 50 Hz
Rated current: 89.5 A
Power factor (cos Φ): 0.8
Fuel tank capacity: 164 L
Autonomy @ 100% load: 10 hours
Noise level @7m: 70 dB
Protection degree: IP23
Dimensions (LxWxH): 2520x1050x1200 mm
Net weight: 1256 kg
Control panel: SMARTGEN HGM 4020
ALTERNATOR
Alternator model: Y224EL
Wiring type: Star connection
Rated power: 50 kW
Efficiency: 88.60%
Excitation: Self-excitation
TIF (telephone influence factor): < 50
THF (harmonic distortion): < 2%
Insulation class: H
Protection degree: IP23
Number of bearings: 1
Phase / Poles: 3
Power factor: 0.8
Voltage regulation: Steady state: ≤±1%, Instantaneous state: 3%
Altitude: 1000 m
Overspeed (min-1): 20%
Alternator winding: Copper wire
Alternator winding: Copper wire
MOTOR
Engine model: YD4EZLD
Engine type: Diesel engine, 4-stroke, 4-cylinder in-line, water-cooled
Rated power @1500rpm: 63 kW
Bore x Stroke: 105x118 mm
Cylinder capacity: 4.087 L
Compression ratio: 18:1
Regulator type: Electronic
INTAKE SYSTEM
Intake type: Turbo
Max. inlet resistance: 4.9 kPa
Air flow: 4.84 m³/min
EXHAUST SYSTEM
Exhaust gas temperature (after Turbo): 550ºC
Exhaust gas flow rate: 12.33 m³/min
Max. exhaust backpressure: 6 kPa
LUBRICATION SYSTEM
Oil bath capacity: 13 L
Oil type: PRO 10W-30
Oil consumption (as % of fuel consumption): 0.82%
Low oil pressure warning: 100 kPa
COOLING SYSTEM
Engine coolant capacity: 7.2 L
Coolant capacity (with radiator): 14.1 L
Max coolant warning temperature: 95ºC
Max. radiator temperature: 50ºC
FUEL SYSTEM
Injection type: Direct injection
Fuel consumption (50%): 9.92 L/h
Fuel consumption (75%): 13.39 L/h
Fuel consumption (100%): 16.87 L/h
STARTING SYSTEM
Electric motor capacity: 5 kW
Starting voltage: 24 V
Battery capacity: 2x80 Ah
CONTROL PANEL
The SmartGen HGM4020 panel is used for automatic control and monitoring of the power generator. It can perform functions such as: automatic start/stop, data measurement, protection alarms, etc.
All parameters can be configured from the front panel or using the USB interface and a computer. It can be widely used in all kinds of automatic control systems due to its compact structure, simple connections and high reliability.
Features:
LCD display that allows easy viewing of information, 132 x 64 pixel resolution;
Control and protection function: automatic generator start/stop, load transfer (ATS control) and error display and protection;
Parameter setting: allows the user to modify the settings and store them on a memory card. The parameters will not be lost even when the power is turned off. The parameters can be set both from the front panel and via the USB interface using a PC;
Multiple temperature, pressure and fuel level sensors can be used directly, with user-defined parameters;
Measurement and display of the following engine parameters: temperature, oil pressure, fuel level, speed, battery voltage, rectifier voltage, number of operating hours, number of starts;
It can measure and display voltage, current, frequency, power parameters of the network / generator.
Technical data:
Supply voltage: 8 ~ 35 Vdc
Power consumption: < 3W (Standby mode: ≤ 2W)
Operating temperature: (-25 ~ +70)ºC
Alternator frequency: 50 / 60 Hz
AC system: 1P2W / 2P3W / 3P3W / 3P4W
Alternator voltage input range
- 3P4W (three-phase 4 wires): 15Vac – 360Vac (ph-N)
- 3P3W (three-phase 3 wires): 30Vac – 620Vac (ph-ph)
- 1P2W (single phase 2 wires): 15Vac – 360Vac (ph-N)
- 2P3W (biphase 3 wires): 15Vac – 360Vac (ph-N)
Speed sensor voltage: 1.0 V – 24.0 V (RMS)
Speed sensor frequency: 10000 Hz (max.)
Start output relay: 5A 28Vdc at source output
Fuel output relay: 5A 28Vdc at source output
Programmable output relays: 4 (1A 28Vdc at source output)
Protection degree: IP65
MFA: YES
kW/A Detection & Display: YES
Programmable interface: USB
CANBUS port: YES
Maintenance: YES
Logbook: YES
Emergency start function: YES
Technical Data
Fuel type:
Diesel
Fuel tank volume:
164 l
Starter:
Electrical start
Fuel consumption:
Kütusekulu (50%): 9,92 l/h
Kütusekulu (75%): 13,39 l/h
Kütusekulu (100%): 16,87 l/h
Power output:
50 kW
Voltage:
230 / 400 V
Maximum power:
56 kW
Frequency:
50 Hz
Rated current:
89,5 A
Dimensions
Weight:
1256 kg
Product dimensions (L x W x H):
2520x1050x1200 mm
Engine
Engine type:
Diesel engine, 4-stroke, 4-cylinder in-line, water-cooled
Oil bath capacity:
13 l
