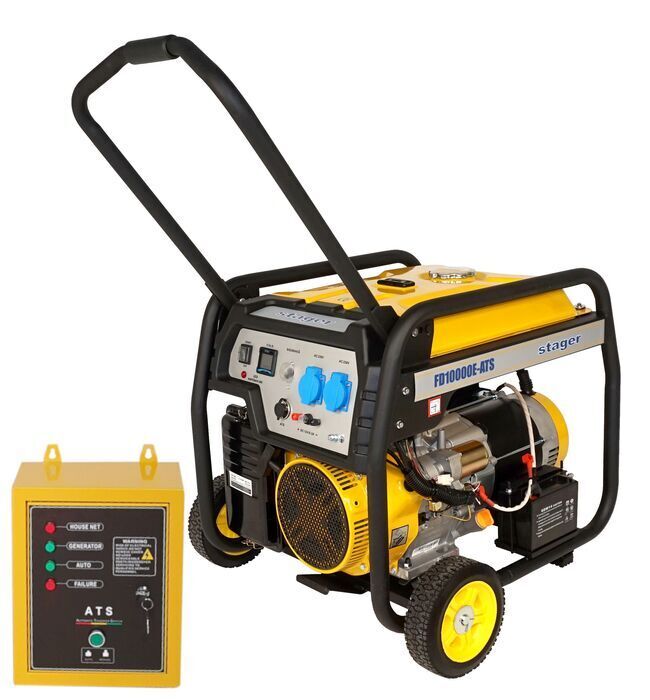

Power Generator FD 10000E-ATS - 8kW, single phase, petrol, electric start + ATS 230V automation - Stager
Producer:
 |
Product code:
5160010000ATS
Originaal ja asenduskoodid:
5160010000ATS
Weight:
98/102 kg
Power output:
8,0 kW
Availability:
Ask for availability before ordering (Delivery 1-3 workday)
Single-phase power generator, compact, reliable, easy to operate and use. Recommended for both home and industrial users, professionals.
Powerful 19hp, four-stroke petrol engine with low fuel consumption and meeting EURO5 environmental pollution standards.
Automatic voltage regulator (AVR) that limits the voltage fluctuations produced by the alternator.
The generator control panel, intuitive and easy to use, incorporates most of the functions and controls of the generator:
- 3 in 1 digital display with display for: voltage, frequency and operating hours.
- oil pressure warning light - signals to the user when the oil level in the sump drops
- thermal safety that interrupts the supply of voltage when the equipment is overloaded, thus protecting the equipment.
Wheel kit for short distance travel, if needed, and folding handle on the generator housing to reduce the size of the equipment. The handle is equipped with a rubber sponge that ensures a firm grip and a pin for locking / unlocking.
Chassis built on a tubular metal protective frame, and equipped with rubber supports to increase stability and reduce vibrations during operation.
Easy access to air filter for easy cleaning or replacement.
12 volt DC socket for light applications or rectified batteries
The generator is equipped with two single-phase sockets with protective cover.
Protective side cover for the muffler.
High capacity fuel tank with petrol level indicator.
Manual (cordless) or electric (no key - on button) start system.
The 12 Volt battery is included in the delivery set.
The generator is equipped with a charging relay for its own battery, when the equipment is operating.
Technical Data
Fuel type:
Petrol
Fuel tank volume:
22 l
Starter:
Recoil - and Electrical start
Fuel consumption:
100% koormus: 5,48 l / h;
75% koormus: 4,93 l / h;
50% koormus: 3,77 l / h
Power output:
8,0 kW
Sound power level, guaranteed (LwA):
96 dB(A)
Voltage:
230 V
Maximum power:
8,5 kW
Frequency:
50 Hz
Rated current:
35 A
Dimensions
Weight:
98/102 kg
Product dimensions (L x W x H):
720x540x595 mm
Engine
Engine type:
Petrol engine, 4 stroke, 1 cylinder, OHV, air cooling
Rated power:
19 hp
Oil bath capacity:
1,2 l
