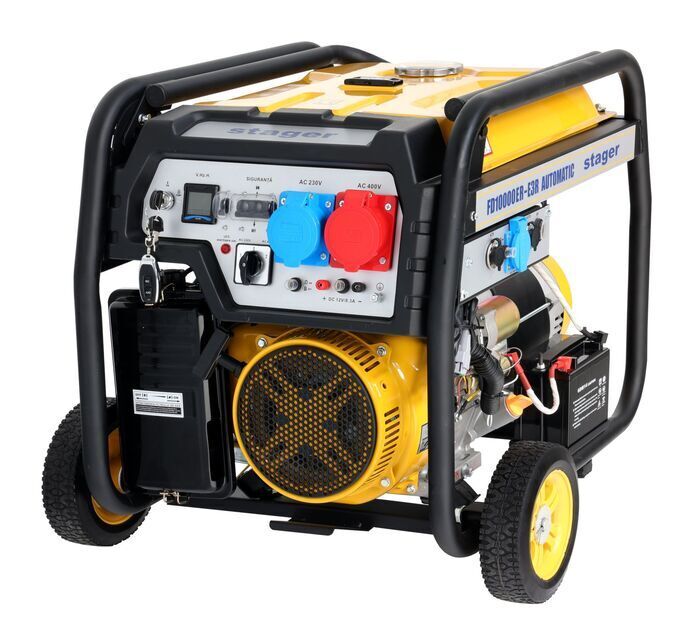

Power Generator FD 10000E3R - 8,5kW, three-phase, petrol, electric start - Stager

Producer:
Product code:
5163110000
Originaal ja asenduskoodid:
5160310000
Weight:
98/102 kg
Power output:
8,0 kW
Availability:
Ask for availability before ordering (Delivery 1-3 workday)
Description:
Single-phase current generator, compact, reliable, easy to handle and use. Recommended for both home and industrial, professional users.
Automatic voltage regulator (AVR) that limits the voltage fluctuations produced by the alternator.
External control connector for ATS, OffGrid inverter
Remote electric start system via radio remote control.
The fuel valve and shock valve are robotic.
The Stager generators from the Automatic series are equipped with a robotic shock (automatic) with precise closing and opening, electrically operated by a stepper motor. Monitoring and adjusting the position of the shock valve is the task of the new multifunctional controller installed on the generators of this series.
Thermal engine, powerful 19 HP, on gasoline, in four strokes that meets the EU V standards in terms of environmental pollution.
The generator control panel, intuitive and easy to use, includes most functions and commands of the generator:
- 3 in 1 digital display with display for: voltage, frequency and operating hours.
- oil pressure warning led - signals to the user when the oil level in the bath drops
- the thermal fuse that interrupts the voltage supply when the equipment is overloaded, thus protecting the equipment.
Solid tubular metal frame, painted in an electrostatic field with very good scratch and corrosion resistance.
Ergonomic handle, soft grip, which ensures a firm grip and pin for locking/unlocking to reduce the size of the equipment.
Wheel kit for traveling short distances.
Equipped with elastic, rubber supports for good stability and reduced vibrations during operation.
Easy access to the air filter for easy cleaning or replacement.
The generator is equipped with two single-phase sockets with a protective cover and a 12 Vdc socket for light applications or battery rectifier
Side protection cover for the muffler.
Large capacity fuel tank with fuel level indicator.
The generator is equipped with a charging relay for its own battery, when the equipment is working and/or standby charging if it is connected to the ATS*

Technical data:
GENERATOR
Nominal voltage: ~ 230/400 V
Nominal frequency: 50 Hz
Nominal power: 8.0 kW / 10 kVA
Maximum power: 8.5 kW / 10.6 kVA
Nominal current: 14.5 A
Power factor: 0.8
Dimensions: 720 x 540 x 595 mm
Noise level LwA: 96 dB(A)
Degree of protection: IP23M
Starting system: Electric, 12Vdc
String starter
Autonomy: 5 hours
Net/gross weight: 98 / 102 kg


MOTOR
Model: YH192FB(E)
Type: Gasoline engine, 4-stroke, 1 cylinder, OHV, air cooling
Nominal power: 19 HP
Nominal speed: 3000 / 3600 rpm
Cylinder capacity: 459 cm³
Oil bath capacity: 1.2 L
Oil type: SAE10W-30, 15W-40
Fuel: Unleaded gasoline
Fuel tank capacity: 22 L
Voltage regulation mode: AVR
Ignition system: CDI
Winding: 100% copper

Fuel consumption:
@ 100% load: 5.48 L/h
@ 75% load: 4.93 L/h
@ 50% load: 3.77 L/h

Features:
2 single-phase 16A sockets with IP44 degree of protection
1 three-phase socket 32A with IP44 degree of protection
Frequency counter, voltage and operating hours
Oil warning light
Thermal safety
Continuous current output 12V/8A
Cord and electric start system with ON/OFF/START button

Delivery set:
1 x 12 V battery
1 x set of wheels
1 x key holder with spark plug key, screwdriver, key 10-12
2 x 16A single-phase plugs
1 x 32A three-phase plug
1 x oil funnel
2 x radio remote control
2 x ignition key
1 x external control connector for ATS, OffGrid inverter
1 x user manual

Optional: *Automation FDATS230 (5160000001), FDATS380 (5160000003)

Price:
1059.00 € 1295.00 €
-18%

Technical Data

Fuel type:
Petrol
Fuel tank volume:
22 l
Starter:
Recoil - and Electrical start
Fuel consumption:
100% koormus: 5,48 l / h; 75% koormus: 4,93 l / h; 50% koormus: 3,77 l / h
Power output:
8,0 kW
Sound power level, guaranteed (LwA):
96 dB(A)
Voltage:
230 / 400 V
Maximum power:
8,5 kW
Frequency:
50 Hz
Rated current:
14,5 A

Dimensions

Weight:
98/102 kg
Product dimensions (L x W x H):
720x540x595 mm

Engine

Engine type:
Petrol engine, 4 stroke, 1 cylinder, OHV, air cooling
Rated power:
19 hp
Oil bath capacity:
1,2 l
